PW PTN IPRAN Fiber Optical Network Series GE 10GE ETH Interface

PTN IPRAN Fiber Optical Network Series GE 10GE

Product Overview

Global Tech products lines provide multiple access solution which locates in terminal of fiber optical network for industry customers. We are providing lower cost and flexible access layer products in PTN network. OAN2000 Series PTN network extender provides high speed Ethernet access and supports standard protocol of Ethernet service. It simplifies the PTN complex protocol overhead and improves the ability of OAM in service layer . The simple operation system can unify the network maintenance which realizes efficiently network management.

Features

• PTN access basic function: add PTN label in Ethernet data which realizes regular Ethernet equipment access into PTN network. Support VLAN and QinQ sending to realize PTN network extending function.
• Web Browser management function in client side: The remote user can configurating and managing PTN equipment through Web browser.
• Strong remote management and maintenance functions: Global Tech telecom grade network management system which install in center server provides online management and configuration for all PTN network extenders. The software support online upgrade.
• High grade protection and cost-effective advantage: 4 FE port adopt 4th grade lightning protection compact hardware design and combined with embed software system to be best solution of cost and performance. Support broadcasting storm control function.
• Global time synchronization function: This feature can facilitate the corresponding relationship between log and time. Provide a very effective reference to the engineering and maintenance personnel.

Technical Parameters

Optical Interface

• Wavelength: 1310nm/1550nm
• Connector: SC/FC
• Sending Power: -9dBm/-12dBm
• RX Sensitivity: ≤-36dBm
• RX dynamic range: ≤27dB

Transmission Distance

• multi-mode: 5Km
• single-mode: 20/60/120Km
• Jitter: comply with G.742 and G.832 standard.

Ethernet Interface

• Bitrate: 10/100M, Full/half duplex auto negotiation
• Protocol: IEE802.3, IEE802.1Q(VLAN)
• Physical Port: RJ45, AUTO-MDIX
• MAC address: up to 4096

Operation Environment

• Working Temperature: -10.C~60.C
• Storage Temperature: -40.C~-85.C
• Relative Humidity: 0%~95%
• Power Supply: AC220V, DC-48V
• Power Consumption: ≤10W
• Physical Dimension:
• 240(W)×140(D)×30(H)mm
• Weight: ≤1.5kg

Application Diagram

e1 interface converter

e1 converter fiber

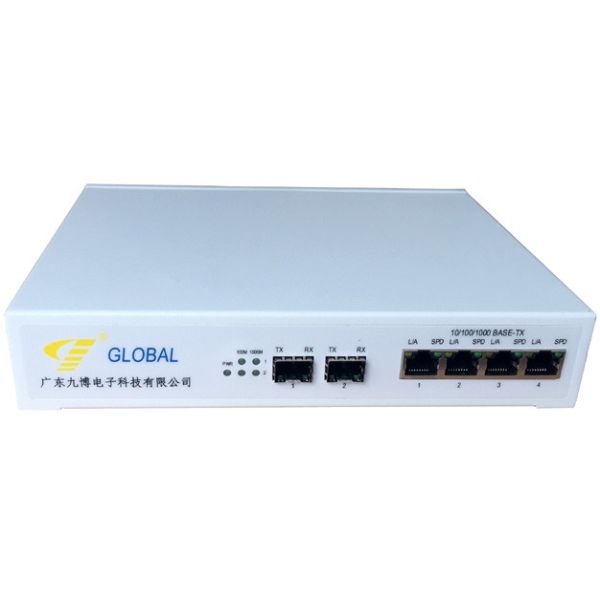

PW PTN IPRAN Fiber Optical Network Series GE 10GE ETH Interface Images
